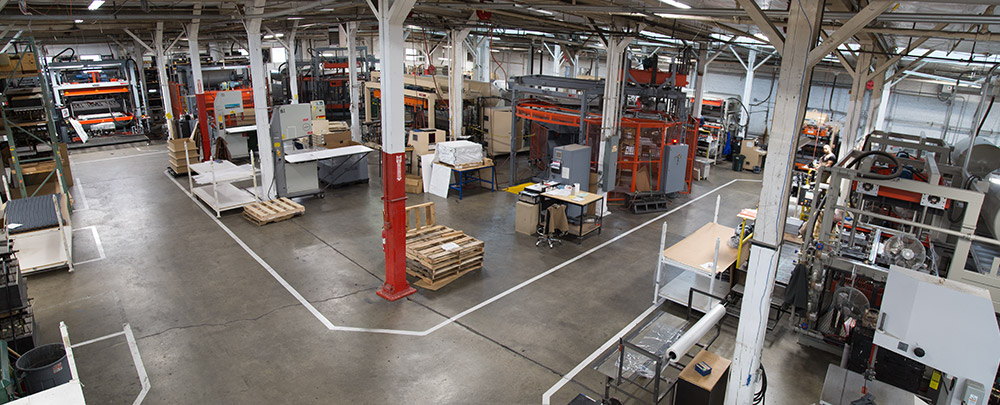

Thermoforming Equipment — Forming Department

Multifab Manufacturing’s forming department combines rotary and single-station pressure and vacuum formers in a range of bed sizes and platen strokes. This lineup supports everything from smaller parts to very large, heavy-gauge panels with tightly controlled results.

Capacity for Complex and Large Parts

This mix of MAAC, Brown, CAM and Comet platforms allows Multifab to match the right machine to the right part size, geometry, and material thickness. Large beds and generous platen stroke accommodate deep draws and tall features, while rotary formers support efficient higher-volume runs without compromising process control.

When combined with Multifab’s CNC router department and in-house tooling, the forming department provides an integrated path from sheet stock to fully trimmed, production-ready parts.

Forming Department Lineup

The forming department equipment list below is adapted directly from Multifab Manufacturing’s published equipment roster (Revised January 2018).

  • MAAC 1: 4' x 6' three station rotary pressure former; 55" platen stroke; top & bottom
  • MAAC 2: 4' x 6' three station rotary vacuum former; 55" platen stroke; top & bottom
  • MAAC 3: 5' x 7' single station pressure former; 48" platen stroke; top & bottom
  • MAAC 4: 5' x 5' single station pressure former; 50" platen stroke; top & bottom
  • Brown: 4' x 6' three station rotary vacuum former; 42" platen stroke; top & bottom
  • CAM 1: 5' x 9' single station vacuum former; 48" platen stroke; top & bottom
  • CAM 2: 3' x 4' single station pressure former; 36" platen stroke; top & bottom
  • CAM 3: 3' x 5' single station pressure former; 36" platen stroke; top & bottom
  • Comet 1: 3' x 4' single station vacuum former; 32" platen stroke; top & bottom
  • Comet 2: 5' x 5' single station vacuum former; 36" platen stroke; top & bottom
  • Comet 3: 5' x 5' single station vacuum former; 36" platen stroke; top & bottom
  • Comet 4: 5' x 5' single station vacuum former; 36" platen stroke; top & bottom
  • Comet 5: 3' x 4' single station vacuum former; 32/27" platen stroke

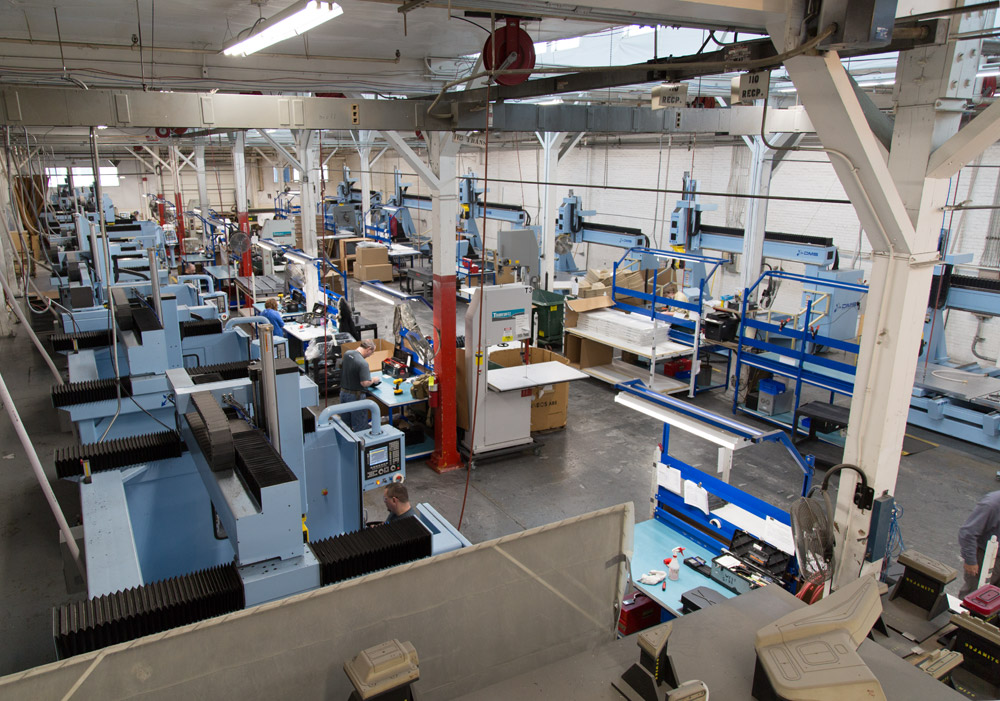

CNC Router Department

  • CNC 1: 4' x 5' single table DMS 5-axis
  • CNC 2: 4' x 5' single table DMS 5-axis
  • CNC 3: 4' x 5' single table DMS 5-axis
  • CNC 4: 4' x 4' single table DMS 5-axis
  • CNC 5: 4' x 4' single table DMS 5-axis
  • CNC 6: 4' x 3' single table Motion Master 5-axis
  • CNC 7: 5' x 5' single table DMS 5-axis
  • CNC 8: 5' x 4' single table DMS 5-axis
  • CNC 9: 5' x 5' single table DMS 5-axis
  • CNC 10: 4' x 8' single table Motion Master 3-axis tool changer
  • CNC 11: 5' x 10' single table DMS 3-axis tool changer
  • CNC 12: 5' x 10' single table DMS 3-axis tool changer
  • CNC 13: 5' x 5' twin table DMS 5-axis
  • CNC 14: 5' x 5' twin table DMS 5-axis
  • CNC 15: 5' x 5' twin table DMS 5-axis
  • CNC 16: 5' x 5' twin table Motion Master 5-axis
  • CNC 17: 5' x 5' twin table DMS 5-axis

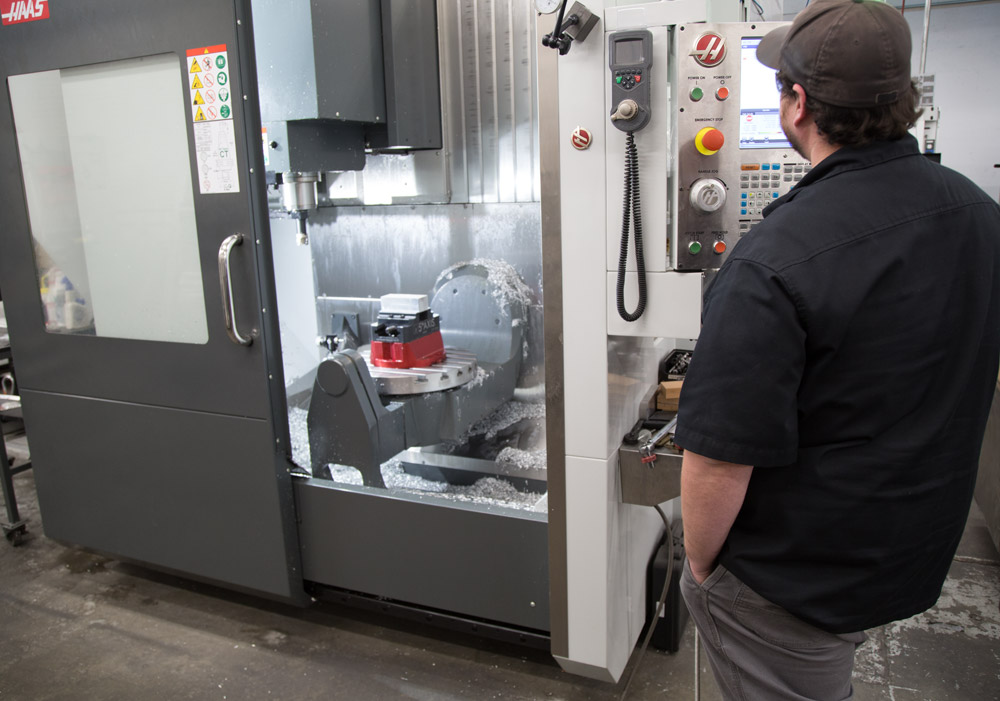

Machine Shop

  • HAAS VF 2: 30" x 16" x 20" vertical machining center
  • HAAS VF 2SS: 30" x 16" x 20" vertical machining center
  • HAAS VF 3: 40" x 20" x 25" vertical machining center
  • HAAS VF 4SS: 50" x 20" x 25" vertical machining center
  • HAAS VM 6: 64" x 32" x 30" vertical machining center with rotary table & Techni grip; 4th axis
  • HAAS UMC 750SS: 30" x 30" x 20" 5-axis machining center
  • HAAS TM-2: 40" x 16" x 16" vertical machining center
  • HAAS SL10 CNC Lathe
  • Manual Mill: 12" x 40" knee mill
  • Yang Radial Arm Drill Press
  • Clausing 20 drill press
  • Yam-1000 Engine Lathe
  • Feeler 2nd OP Machine
  • Metal Cutting Band Saw
  • Surface Grinder
  • Surface Plate, Height Gauges, and various other measuring equipment
